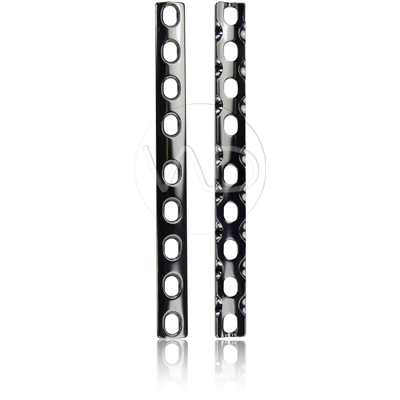

3.5mm Limited Contact Dynamic Compression Plates
- Made from high precision CNC machined 316LVM for exceptional dimensional consistency and microstructural homogeneity
- Post-processed with a micro-beaded surface treatment to maximize mechanical property performance, biocompatibility and reflective glare control in the OR
- Limited contact design improves periosteal circulation to optimize bone healing for non-locking plates
SKU | # OF HOLES | LENGTH (mm) | WIDTH (mm) | THICKNESS (mm) |
PDCPLC27/04 | 4-Hole | 51.50 | 10.00 | 3.40 |
PDCPLC27/05 | 5-Hole | 61.00 | 10.00 | 3.40 |
PDCPLC27/06 | 6-Hole | 73.00 | 10.00 | 3.40 |
PDCPLC27/07 | 7-Hole | 85.00 | 10.00 | 3.40 |
PDCPLC27/08 | 8-Hole | 97.00 | 10.00 | 3.40 |
PDCPLC27/09 | 9-Hole | 109.00 | 10.00 | 3.40 |
PDCPLC27/10 | 10-Hole | 121.00 | 10.00 | 3.40 |
PDCPLC27/11 | 11-Hole | 133.00 | 10.00 | 3.40 |
PDCPLC27/12 | 12-Hole | 145.00 | 10.00 | 3.40 |
Specifications
Plate # of Holes | 4-Hole or 5-Hole or 6-Hole or 7-Hole or 8-Hole or 9-Hole or 10-Hole or 11-Hole or 12-Hole |
Locking or Non-Locking | Non-Locking |
Plate Type | 3.5 |
Broad Plate | No |
Limited Contact Plate | Yes |
